The irregular contactless card inlay is core component of irregular RFID card, such as: mini card, keychain card, epoxy card, etc. We choose reliable card components and connect them reliable. We ca

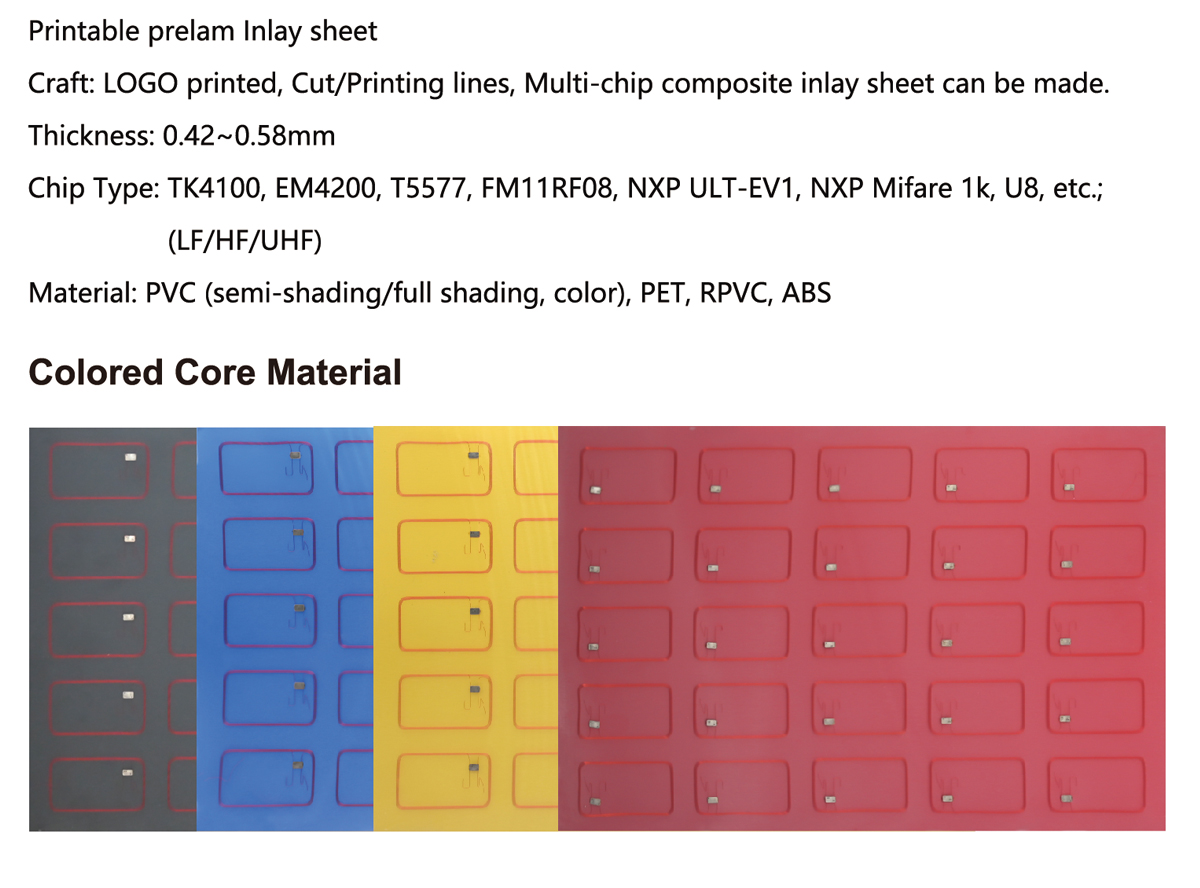

The RFID card inlay is two or three PVC/PET layers laminated with embedded chip and antenna, also called chip material or pre lam (pre-laminating), it is a semi-finished product and core component of
Inlay sheet for combi card means the prelam (pre-laminating) specially designed for smart card contact and smart card contactless. It supports both contact and contactless communication, and controlle
Premium RFID wood inlay sheets integrated with Mifare 1K chips. Combines natural wood aesthetics with secure IC technology. Ideal for high-end access control and payment cards.
RFID Tags/RFID Wood Inlay
Eco-friendly RFID wood inlay sheets for smart cards combine natural wood with advanced RFID technology. Perfect for sustainable, high-end cards like access, payment, or membership cards. Customizable, durable, and compliant with ISO standards. Ideal for elegant and planet-conscious branding.
Different sizes, materials, chips are available, and you can personalize it.
24-hour one-on-one service, Fast delivery, and Good packaging.
Product details

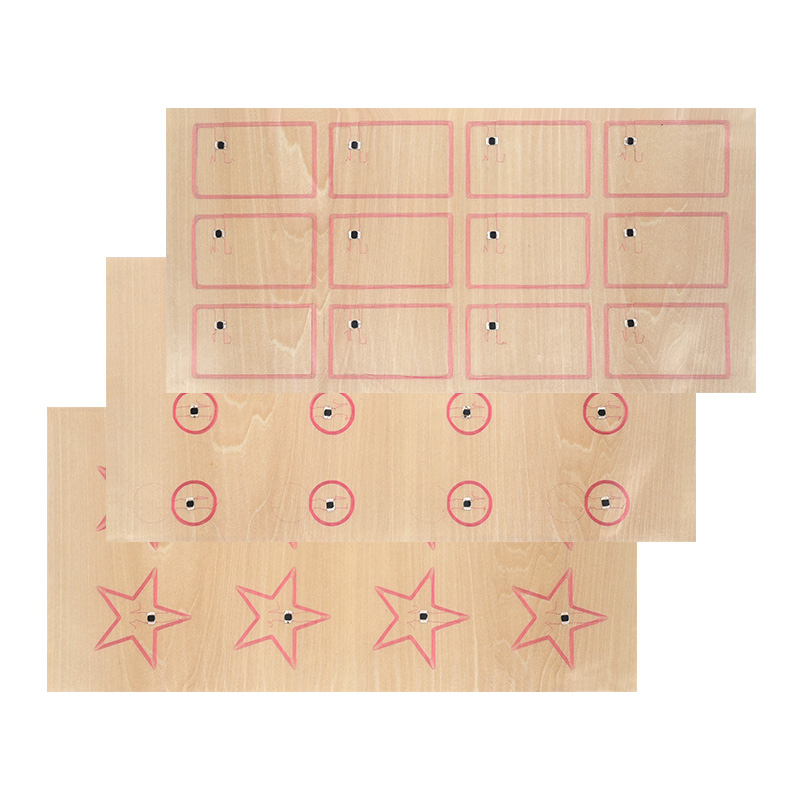

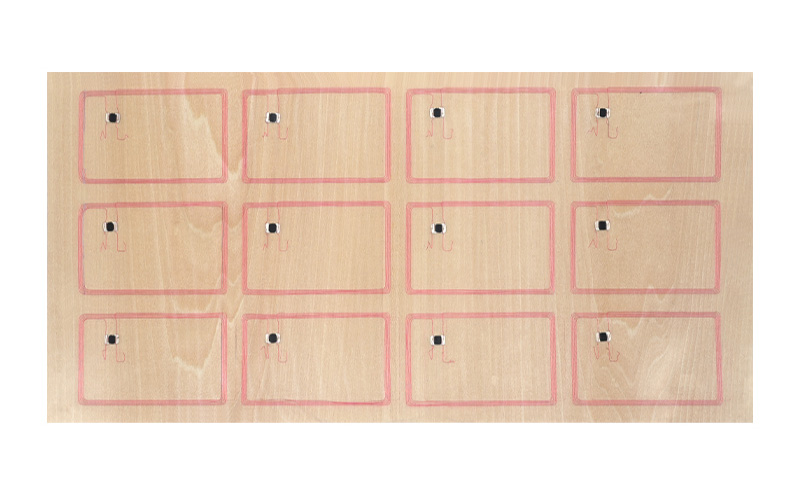

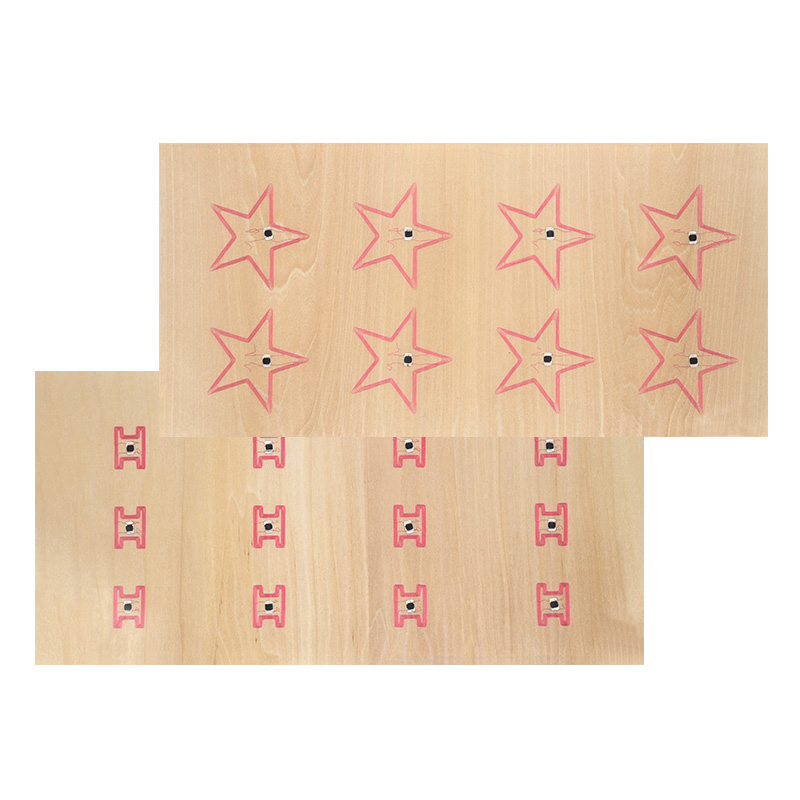

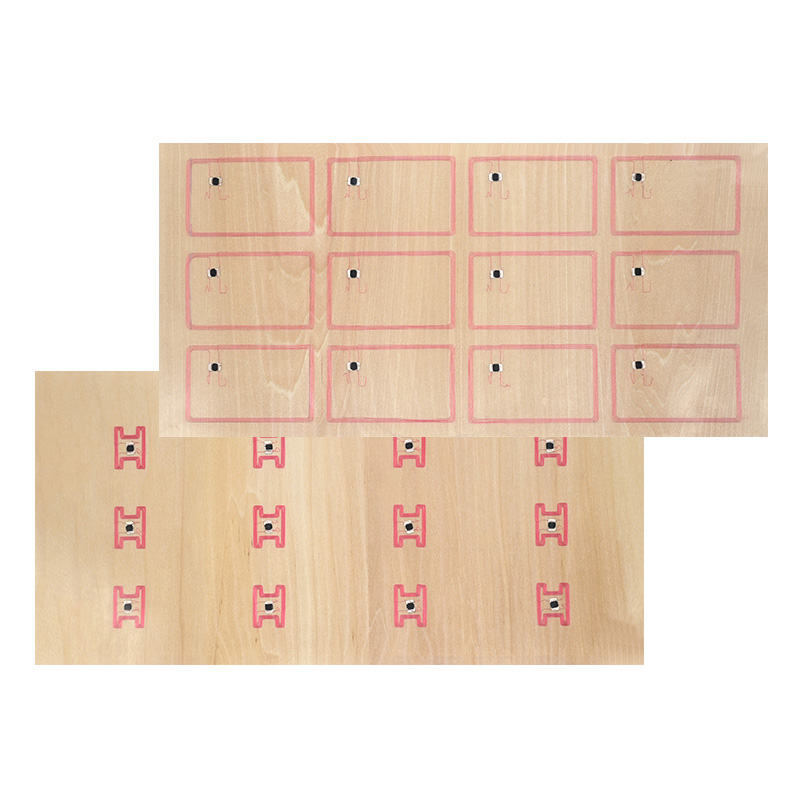

The RFID Wood Inlay Sheet for Smart Card combines eco-friendly natural wood veneer with advanced RFID technology to create sustainable and sophisticated card solutions. This innovative product features a layered structure with embedded RFID chips that support both HF (13.56MHz) and UHF frequencies, ensuring reliable performance while maintaining the natural beauty and texture of real wood. Each sheet can be customized in size, thickness, and surface finishing, making it ideal for various smart card applications. Compatible with standard card manufacturing processes, these biodegradable inlay sheets offer an environmentally responsible alternative to plastic cards without compromising on functionality or elegance.
Features
Natural and biodegradable wood surface
Dual-frequency support (HF/UHF)
Excellent anti-interference performance
Customizable size and surface treatment
Compliant with ISO international standards
Material | Packing: PVC, PET, PET-G, PC,Wood | |
Antenna: copper coil, aluminum | ||
Thickness | 0.40mm±0.02mm or customized, minimum thickness: 0.35mm. | |
Layout & size | 5*5 | 305*460mm(popular inside China) |
3*8 | 295*480mm(popular inside China) | |
4*8 | 391*520mm | |
4*10 | ||
5*8 | 495*518mm | |
extra-large size 56(7*8) layout is available, another layout can be customized. | ||
Interface | Contactless and contact | |
Frequency | 13.56MHz, customizable | |
Chip | FM1208, Java card, and other model | |
Antenna Technique: | HF: Aluminum etching, pre-winding copper coil, ultrasonic wire implanting / ultrasonic welding | |
Antenna Size | 520*410mm,490*310mm,470*390mm,600*380mm | |
Technique | Double interface tin slice technology | |
Double interface conductive adhesive technology | ||
Double interface pickline technology | ||
Pack | 50pcs/bag | |
Storage temperature | -25°C ~ +65°C | |
Applications
Premium membership and gift cards
Wooden access cards and employee badges
Eco-friendly payment cards
Branded promotional cards
Anti-counterfeiting cards for luxury goods
RFID Wood Inlay
