TK4100 RFID Inlay-TK4100RI-001 is one type of RFID Inlay, it's Consists of the chip, the sensor antenna,it's Packaged in a standard PVC, ABS, PET material card, No exposed parts of the card.the TK4100
Smart card inlay is layers of PVC/PET laminated with CPU chip and printed with antenna. It is a great solution to produce Java card. Smart card inlay is the critical and core component of a JAVA card.
Sustainable RFID inlay sheets made from biodegradable materials. Perfect for eco-conscious businesses seeking green technology solutions. Combines environmental responsibility with reliable RFID perfo
The Card inlay is a very important component of RFID smart cards, which directly affects the performance of the card. Therefore, you are better to choose a reliable supplier.

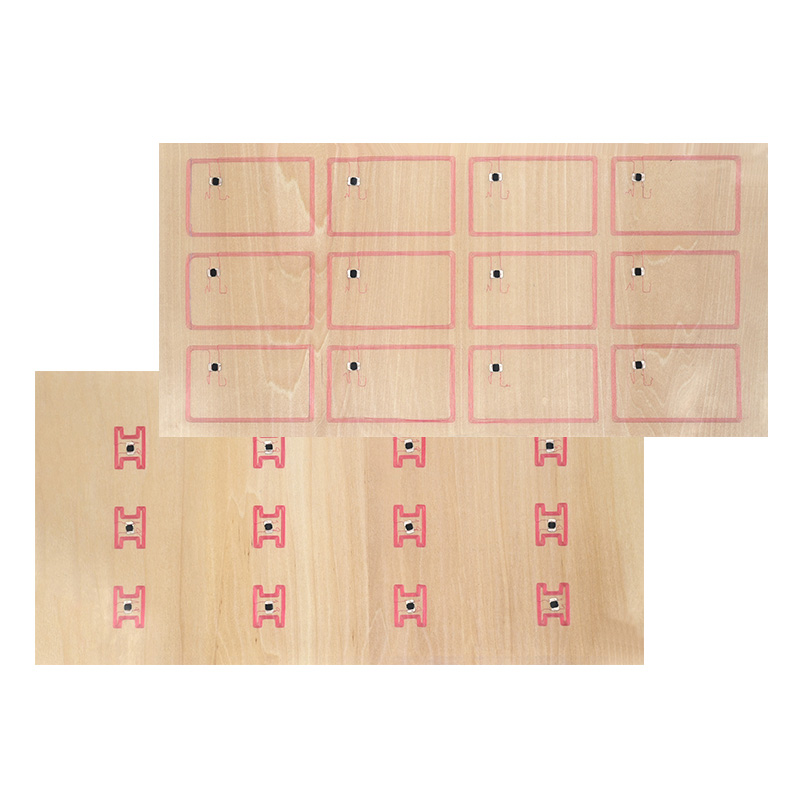

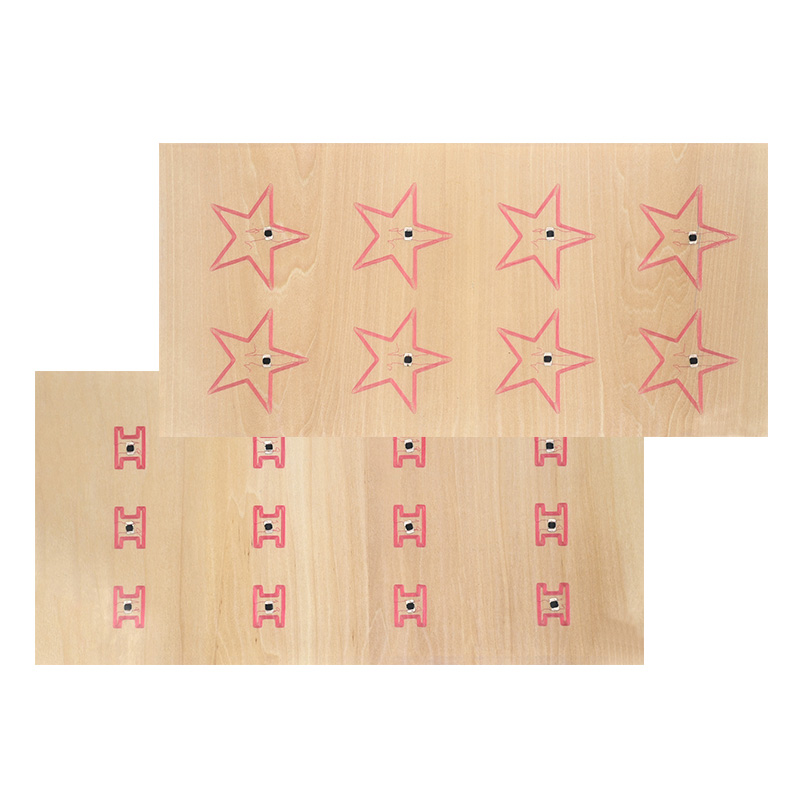

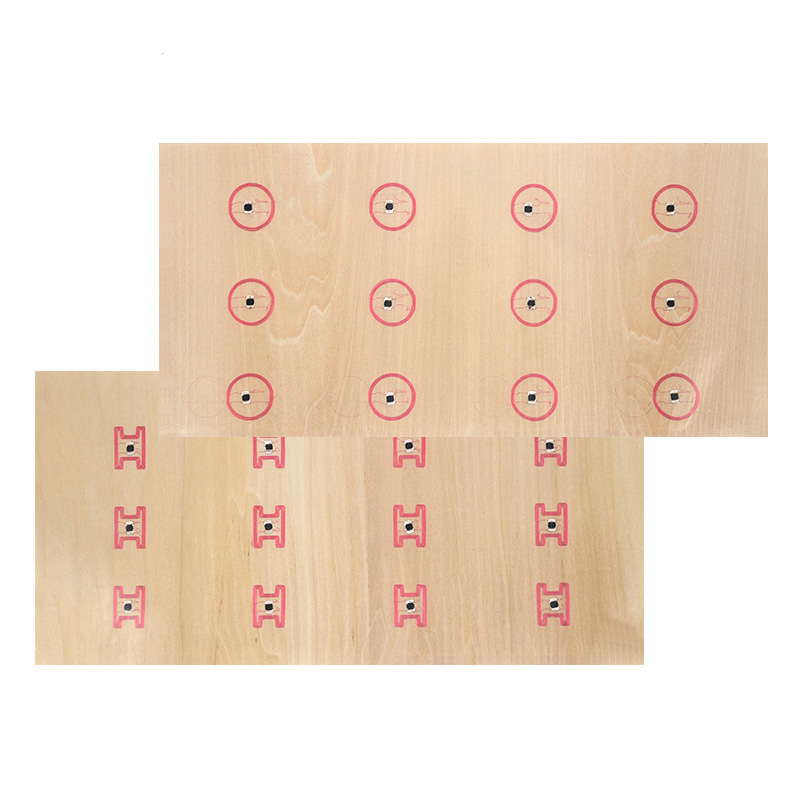

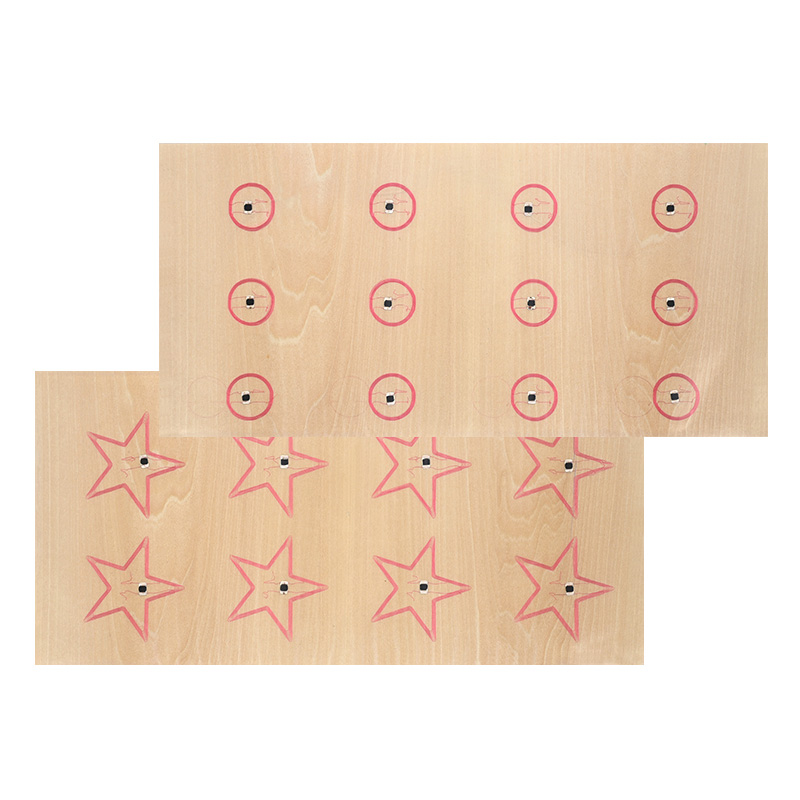

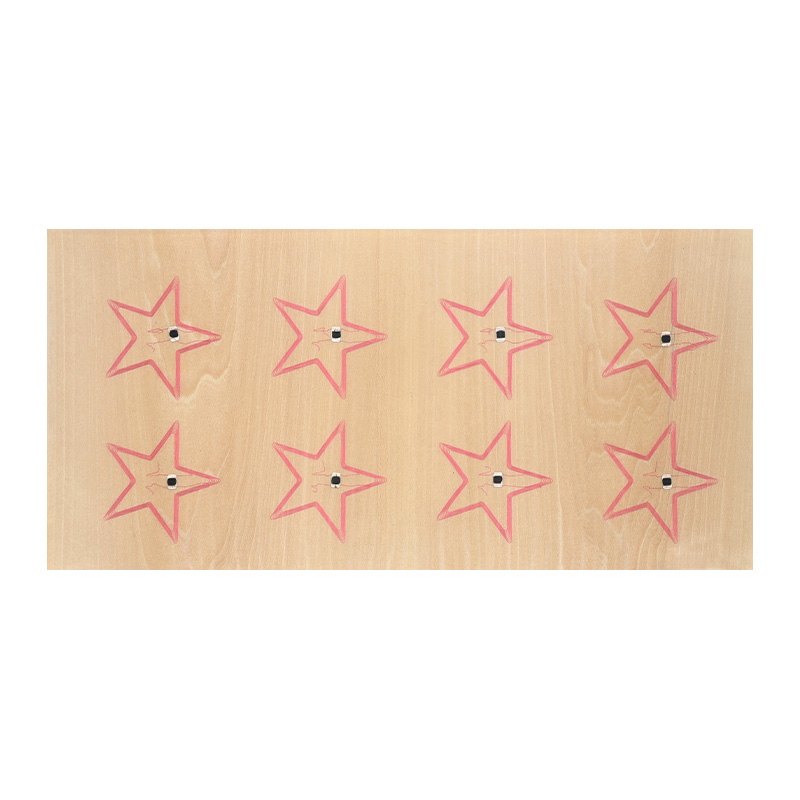

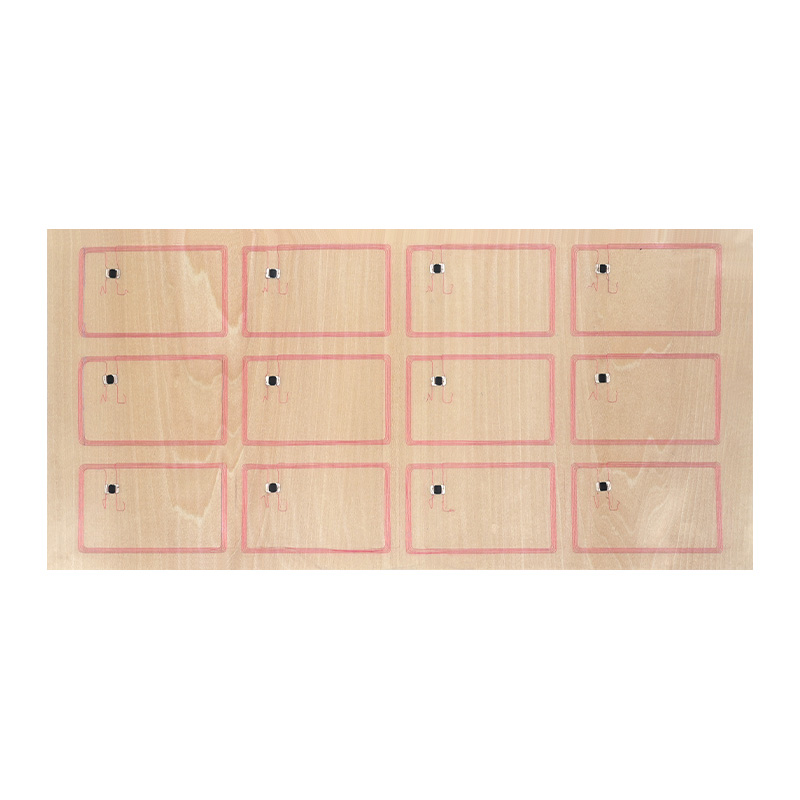

RFID Inlay/RFID Wood Inlay
Sustainable RFID inlay sheets made from biodegradable materials. Perfect for eco-conscious businesses seeking green technology solutions. Combines environmental responsibility with reliable RFID performance.
Different sizes, materials, chips are available, and you can personalize it.
24-hour one-on-one service, Fast delivery, and Good packaging.
Product details
Our Eco-Friendly Material RFID Inlay Sheet represents a breakthrough in sustainable RFID technology. Manufactured using biodegradable and recycled materials, these innovative inlay sheets provide an environmentally responsible solution for modern RFID applications. The sheets incorporate high-performance RFID chips and precision antennas that deliver excellent read/write performance while significantly reducing environmental impact. Compatible with both HF (13.56MHz) and UHF frequencies, these eco-conscious inlays maintain full functional compatibility with conventional RFID systems. They are RoHS compliant and meet international environmental standards, making them ideal for businesses looking to enhance their sustainability profile without compromising on technology performance or reliability.
Features
Made from biodegradable and recycled materials
Dual-frequency support (HF/UHF)
Excellent read/write performance and stability
Customizable sizes and chip configurations
Compliant with environmental certifications and ISO standards
Strong anti-interference capability
Material | Packing: PVC, PET, PET-G, PC,Wood | |
Antenna: copper coil, aluminum | ||
Thickness | 0.40mm±0.02mm or customized, minimum thickness: 0.35mm. | |
Layout & size | 5*5 | 305*460mm(popular inside China) |
3*8 | 295*480mm(popular inside China) | |
4*8 | 391*520mm | |
4*10 | ||
5*8 | 495*518mm | |
extra-large size 56(7*8) layout is available, another layout can be customized. | ||
Interface | Contactless and contact | |
Frequency | 13.56MHz, customizable | |
Chip | FM1208, Java card, and other model | |
Antenna Technique: | HF: Aluminum etching, pre-winding copper coil, ultrasonic wire implanting / ultrasonic welding | |
Antenna Size | 520*410mm,490*310mm,470*390mm,600*380mm | |
Technique | Double interface tin slice technology | |
Double interface conductive adhesive technology | ||
Double interface pickline technology | ||
Pack | 50pcs/bag | |
Storage temperature | -25°C ~ +65°C | |
Application
Green logistics and supply chain management
Eco-friendly retail product labeling
Sustainable event management
Green library systems
Environmental asset tracking
Smart waste classification systems
