TK4100 RFID Inlay-TK4100RI-001 is one type of RFID Inlay, it's Consists of the chip, the sensor antenna,it's Packaged in a standard PVC, ABS, PET material card, No exposed parts of the card.the TK4100
Smart card inlay is layers of PVC/PET laminated with CPU chip and printed with antenna. It is a great solution to produce Java card. Smart card inlay is the critical and core component of a JAVA card.
UHF 6C RFID Inlay-UHF6CRI-001 is one type of RFID Inlay, it's Consists of the chip, the sensor antenna,it's Packaged in a standard PVC, ABS, PET material card, No exposed parts of the card.the UHF 6C
RFID Inlay-FUDAN RI-001 is one type of RFID Inlay, it's Consists of the chip, the sensor antenna,it's Packaged ina standard PVC, ABS, PET material card, No exposed parts of the card.the Fu
RFID Tags / RFID Inlay
The Card inlay is a very important component of RFID smart cards, which directly affects the performance of the card. Therefore, you are better to choose a reliable supplier.

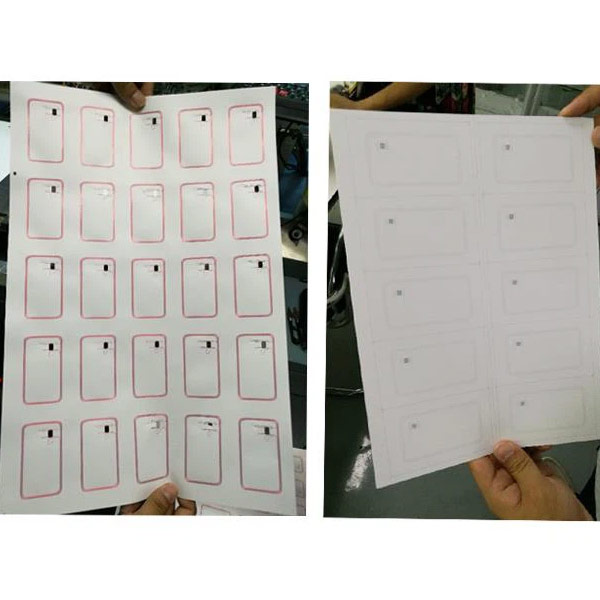

Smart card inlay is layers of PVC/PET laminated with CPU chip and printed with antenna. It is a great solution to produce Java card. Smart card inlay is the critical and core component of a JAVA card. Reliable card inlay decides the function and performance of a finished RFID card.
Different sizes, materials, chips are available, and you can personalize it.
24-hour one-on-one service, Fast delivery, and Good packaging.
Product details
Features
1, brand new PVC material, stands unequaled torsion and bending,
2, automatic copper wire implanting, and spot welding, guarantee stable and reliable performance.
3, Chip shelter processing and high temperature steel sheet direct pressuring process ensure flatness of the finished card.
4, layout and thickness can be customized to meet specific requirement,
5, Trimmed reference edges and optional printed cross marks make the further process easier.
Specification:
| Material | Packing: PVC, PET, PET-G, PC | |
Antenna: copper coil, aluminum | ||
Thickness | 0.5±0.02mm | |
Layout & size | 5*5 | 305*460mm(popular inside China) |
3*8 | 295*480mm(popular inside China) | |
2*5 | 210*279(popular worldwide) | |
3*7 | 310*420mm(popular worldwide) | |
4*5 | 320*390mm | |
4*8 | 391*520mm | |
5*6 | 360*460mm | |
5*8 | 495*518mm | |
6*6 | 352*577mm | |
another layout can be customized. | ||
Interface | Contactless | |
Frequency | 13.56MHz, other frequency can be customized | |
Chip | FM1208/09/10, Mifare Desfire, NXP Jcop, | |
Chip Status | COB, MOA4, (with thickness of 0.35~0.38mm) | |
Antenna Technique: | pre-winding copper coil, ultrasonic wire implanting / ultrasonic welding | |
Antenna Size: | 38*68mm, 40*70mm | |
Technique | Direct pressure technique | |
Double-sided sheltering (ensures the flatness of the chip position, no bumps) | ||
Pack | 50pcs/bag | |
Storage temperature | -25°C~+65°C | |
Application:
Semi-product to produce CPU card/smart card.
